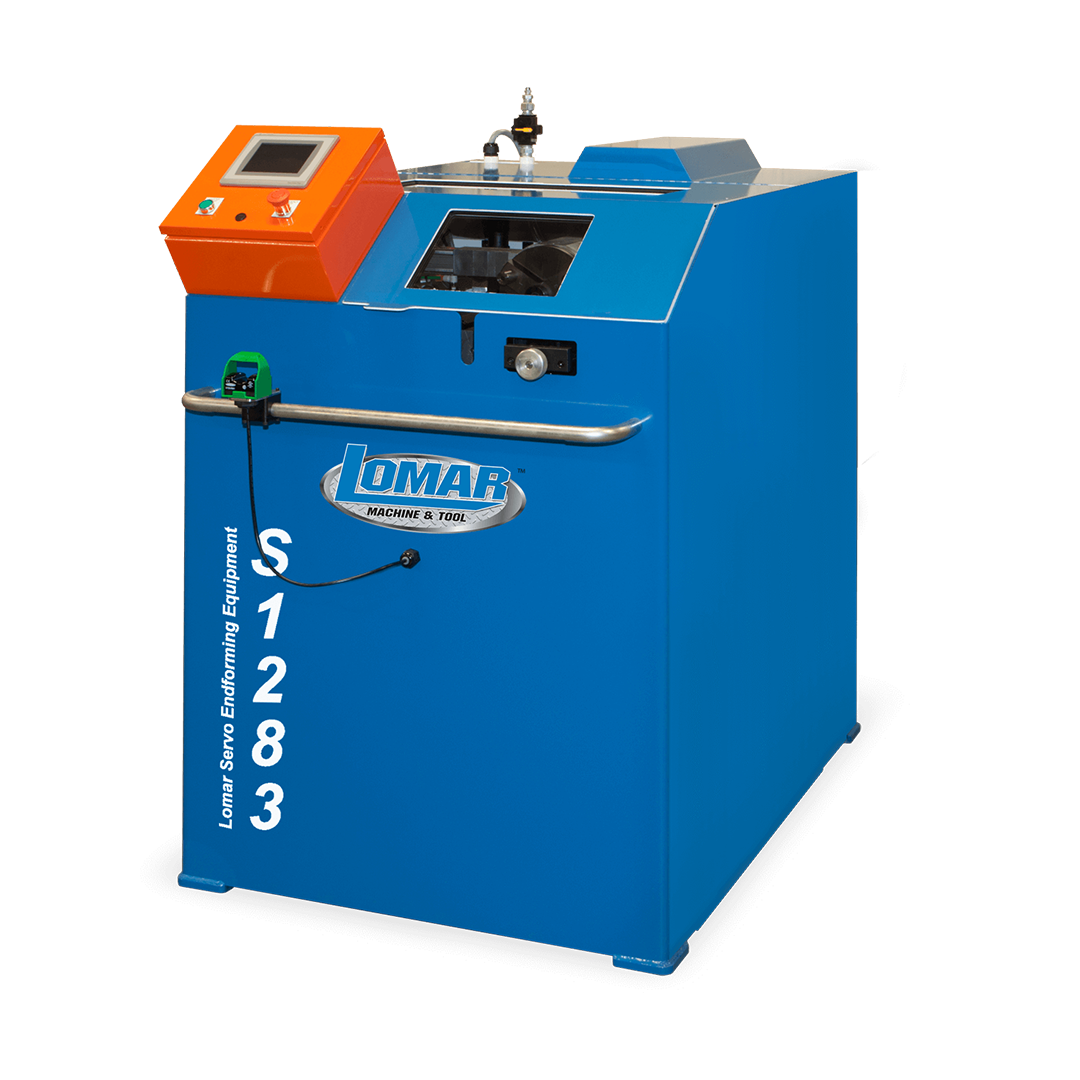

S1283 3-Hit Servo End Former
S1283 3-Hit Servo End Former
The S1283 electric servo endformer is designed for production tube endforming for a variety endform configurations up to 5/8” tubing.
- Three position servo turret
- Up to 5/8″ O.D. Tubing (Application & material dependent)
- Two ton servo ram
- 4″ of ram stroke
- HMI Touch Screen
- Accepts Industry Standard Tooling
Details
Applications
-

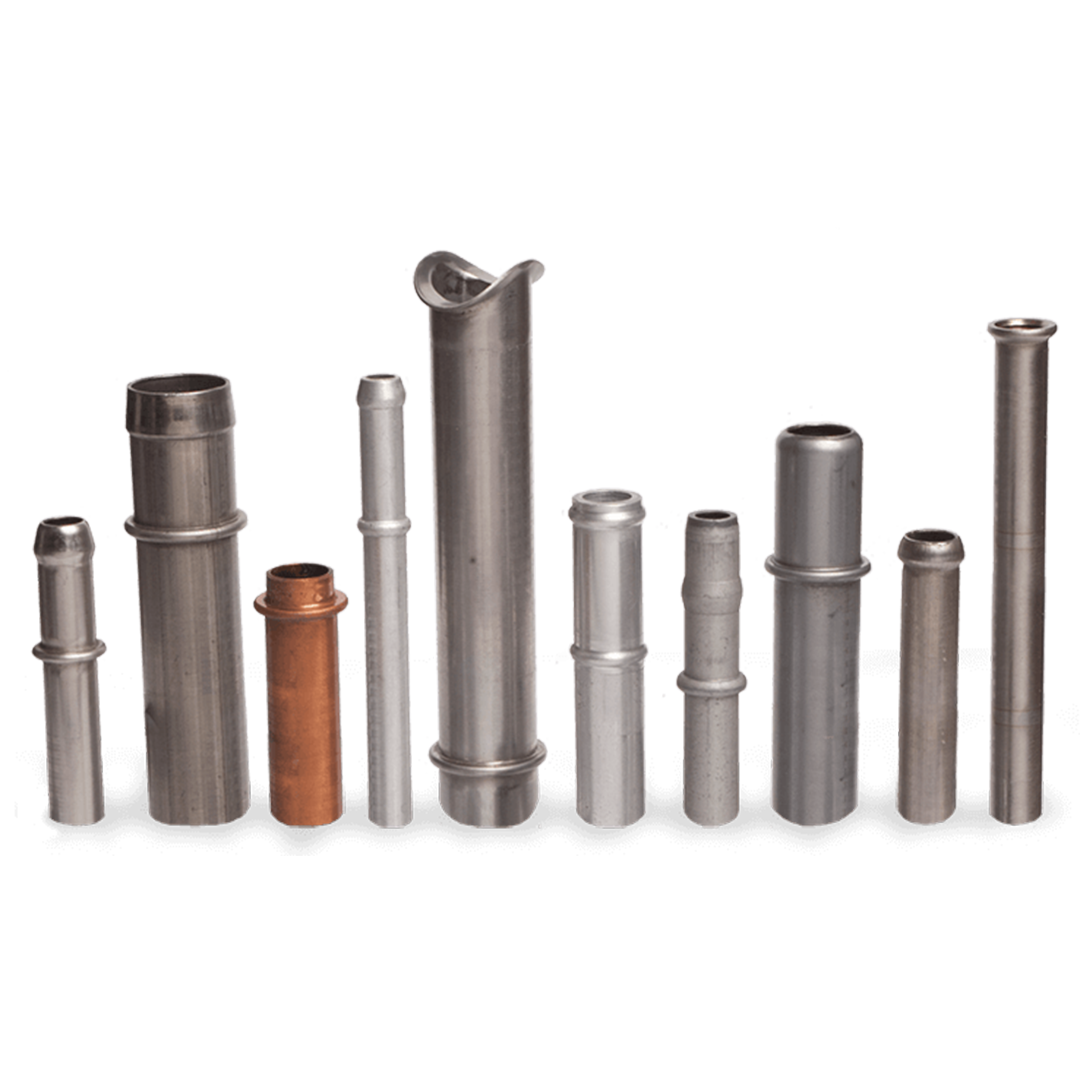

1/4″ through 5/8″ O.D. Tubing
(Application dependent)
Specifications
- ELECTRICAL: Per Customer Requirements
- SERVO RAM FORCE: (2 tons)
- MACHINE CYCLE TIME: 2-6 Seconds (Depending on part configuration)
- CAPACITY: 1/4″ through 5/8″ O.D. (Dependent on material and application)
- SHIPPING WEIGHT: Approximately 2,500 lbs
- DIMENSIONS: 36″ wide by 56″ deep by 56″ high
Features
- 3 Position Servo Tooling Turret
- Up to 5/8″ O.D. Tubing ( Application & material dependent)
- 2 Ton Servo Ram
- 4″ of Ram Stroke
Options
- Auto load/unload systems
- Part Lubrication System
- Light Curtains
- Robot Integration
- CSA / CE/ NR12 compliance available
Ready to get started?
Make sure to have the following items handy when making your request for quote:
- Crimp specification
- Ferrule print
- Hose print
- Tube endform print
- Sample part – crimped
- Assembly print (with coordinates)
