S1203 Dual Servo Roll Groove Machine
S1203 Dual Servo Roll Groove Machine
Strategic Automation S1203 Roll Grooving machine has programmable dual servo controls via the HMI for independent control of the groove depth and location, additionally speed and feed rates.

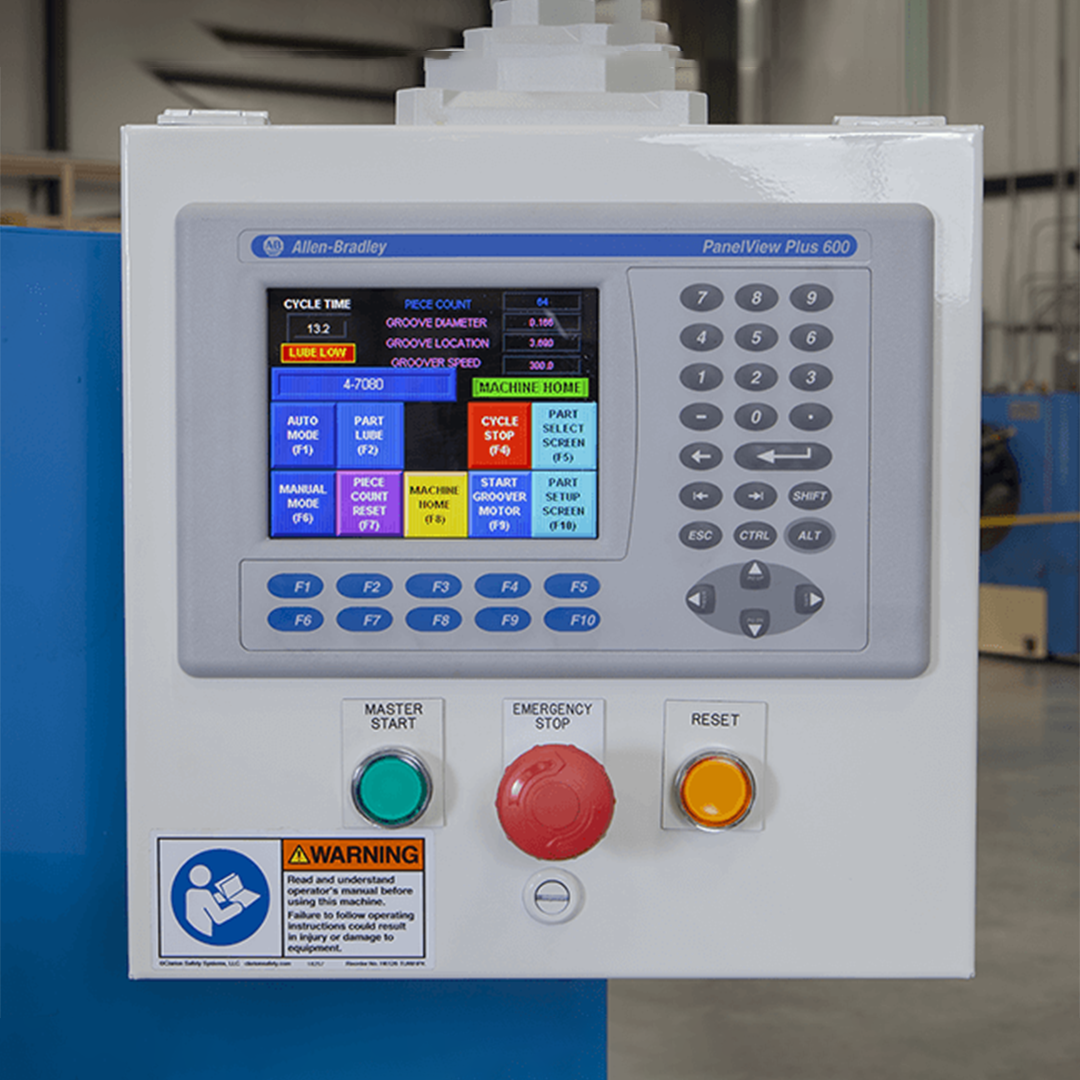

The operator HMI has the ability to store multiple part numbers enabling the operator to make simple part changes including diameter changes from 5/16″ to 3/4″ diameter tubing when utilizing the same roll form configuration.
Details

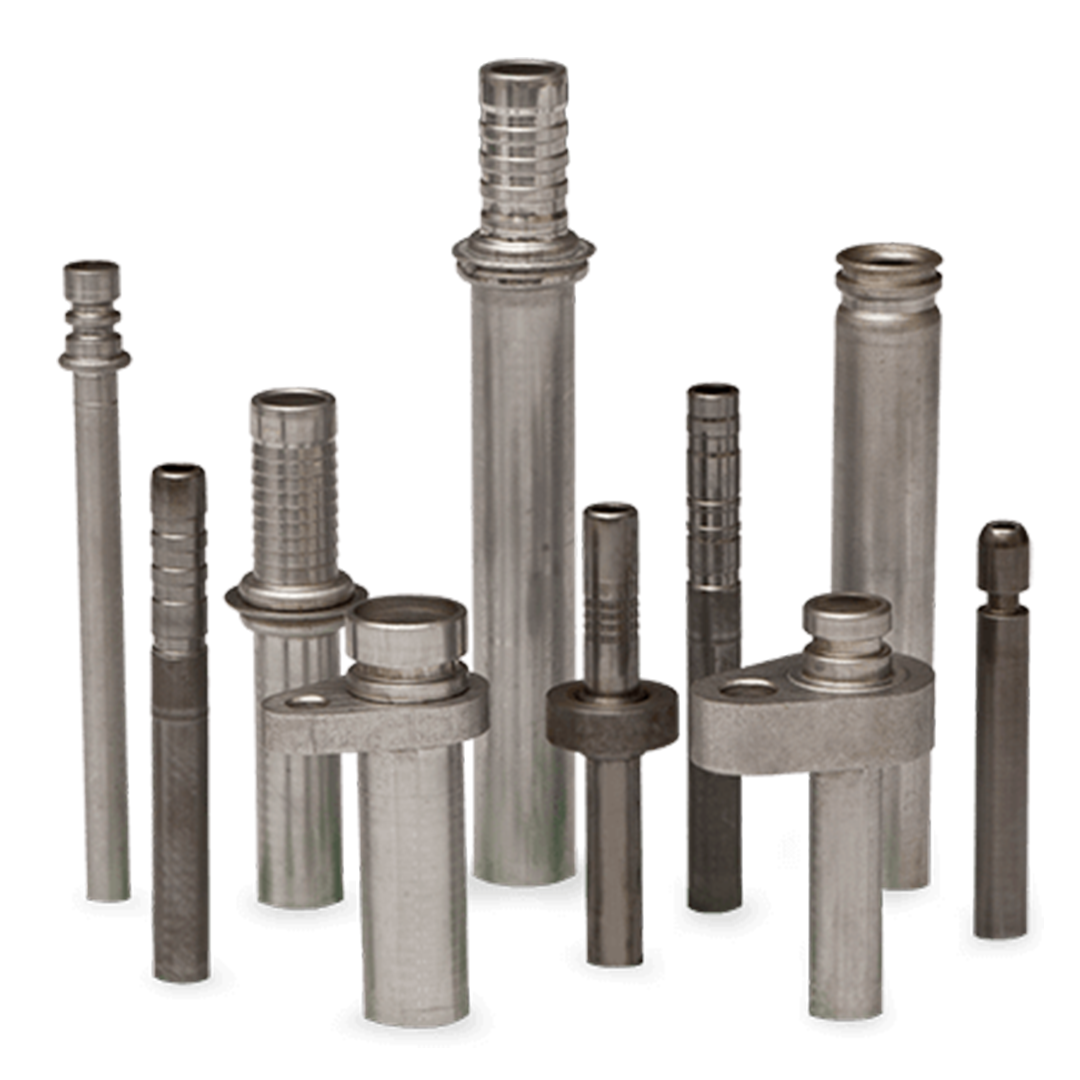

Applications
- O-Ring Grooves
- Barbs
Specifications
- ELECTRICAL: Per customer requirements
- MACHINE CYCLE TIME: Variable; application dependent
- NOISE LEVEL: 65 dBa at operator station
- CAPACITY: 5/16 through 3/4″ O.D. steel or aluminum
- SHIPPING WEIGHT: Approximately 3,000 lbs
- DIMENSIONS: 48″ wide by 84″ deep
Features
- HMI allows for independent adjustment of groove diameter, position, speed and feed rate
- Easy access for tooling changeouts
- Pneumatic tooling clamp up
- Flood lubrication system
Options
- Component Bowl Feeders
- Robot integration and transfer systems
- CE/CSA/NR12 compliance available upon request
- Industry 4.0
Ready to get started?
Make sure to have the following items handy when making your request for quote:
- Endform print
- Material specification
- Tube diameter
- Wall thickness
