S1183 Endformer
S1183 Endformer

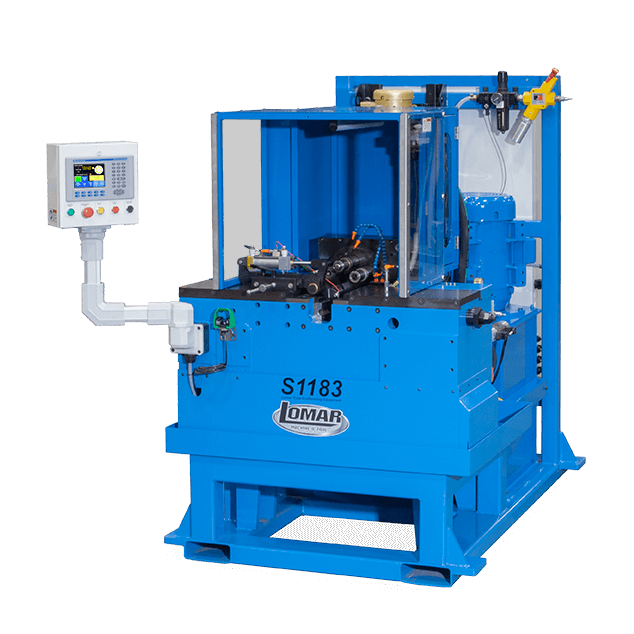

Strategic Automation’s S1183 hydraulic endformer is a six hit machine with standard clamping set-up and is also available with secondary clamping set-up.

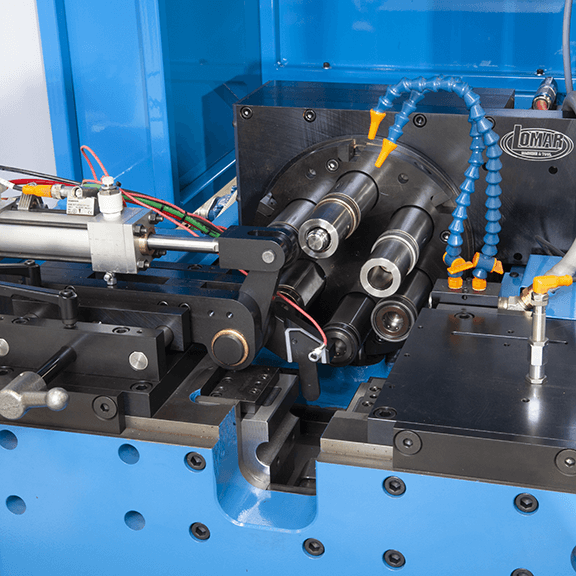

The six position servo indexing tool head allows the operator to program one hit or up to six hits. The tool head can also be indexed in either direction allowing for minimal cycle times or to accommodate multiple tooling set-ups.
Details

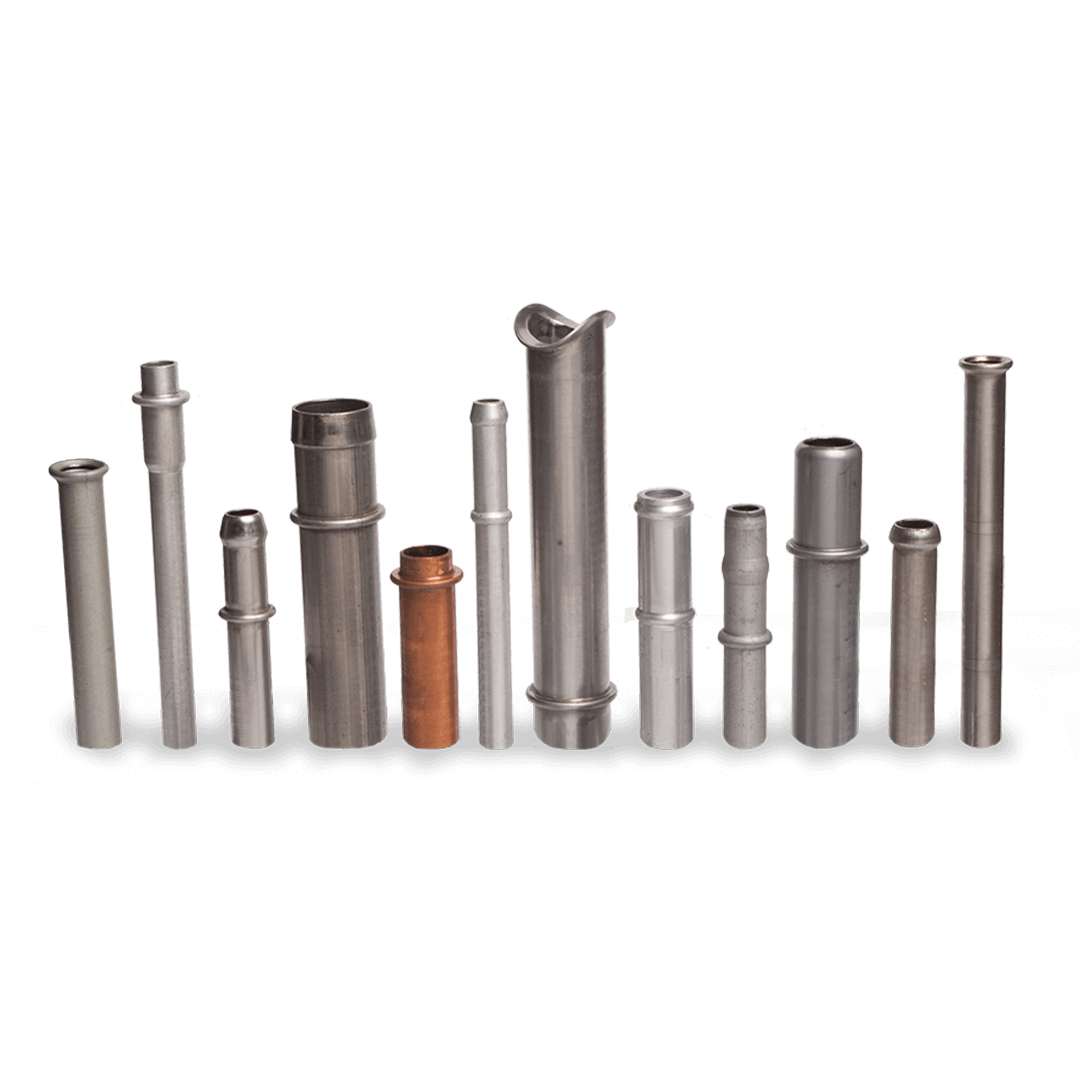

Applications
- Bead Locks
- Dual Plane Seals
- Captured O-Ring
- O-Ring Seals
- Female Spring Lock
- Male Spring Lock
- Reductions
- Expansions
Specifications
- ELECTRICAL: Per customer requirements
- MACHINE CYCLE TIME: Variable; application dependent
- NOISE LEVEL: 85 dBa at operator station
- CAPACITY: 2″ O.D.
- SHIPPING WEIGHT: Approximately 5,000 lbs
- DIMENSIONS: 50″ wide by 80″ deep
Features

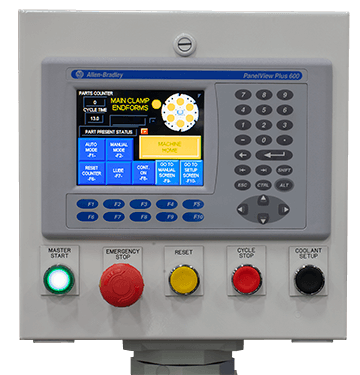

- HMI Operator Screen
- 1 to 6 hits – Operator programmable
- Adjustable Flag Stop

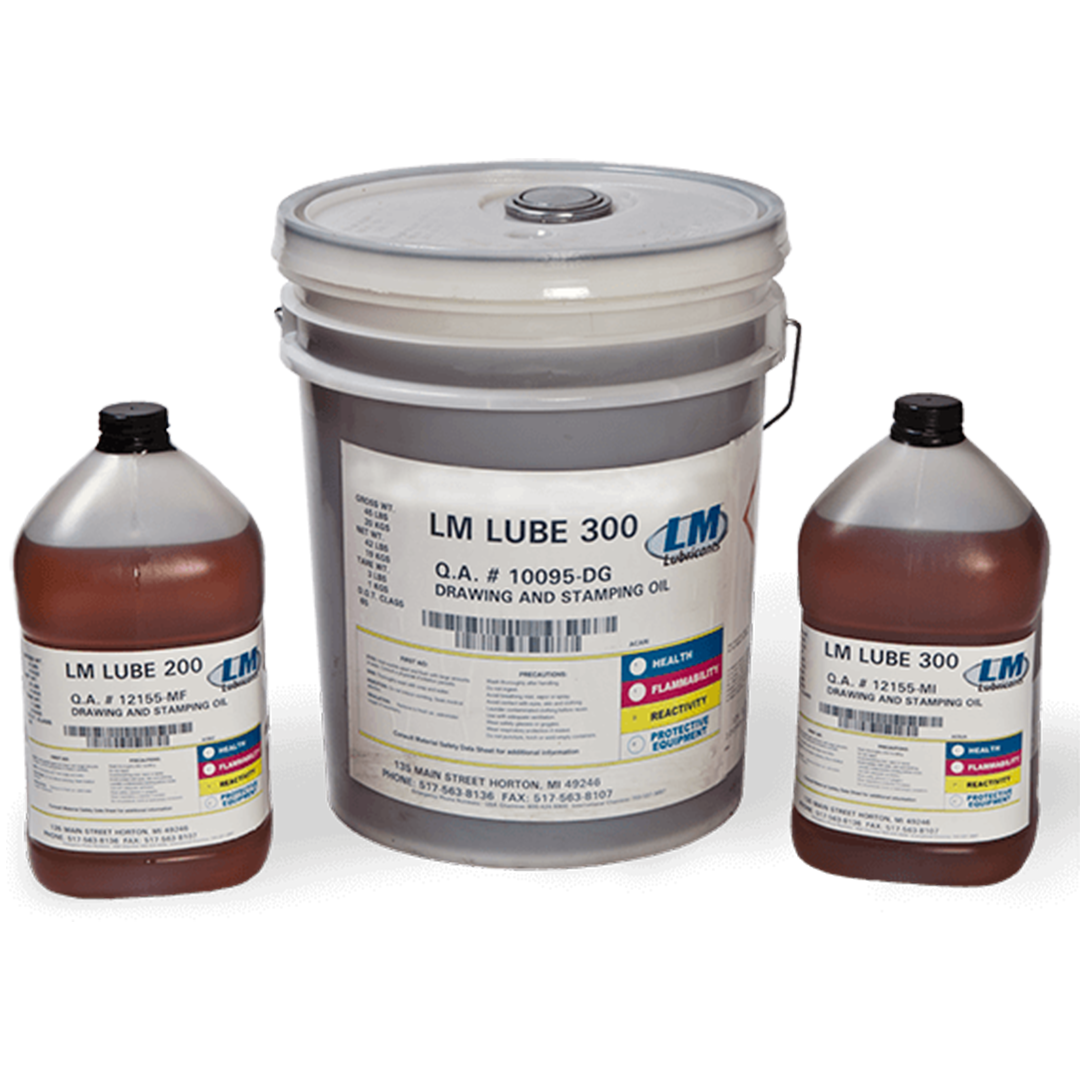

- Flood Lubrication

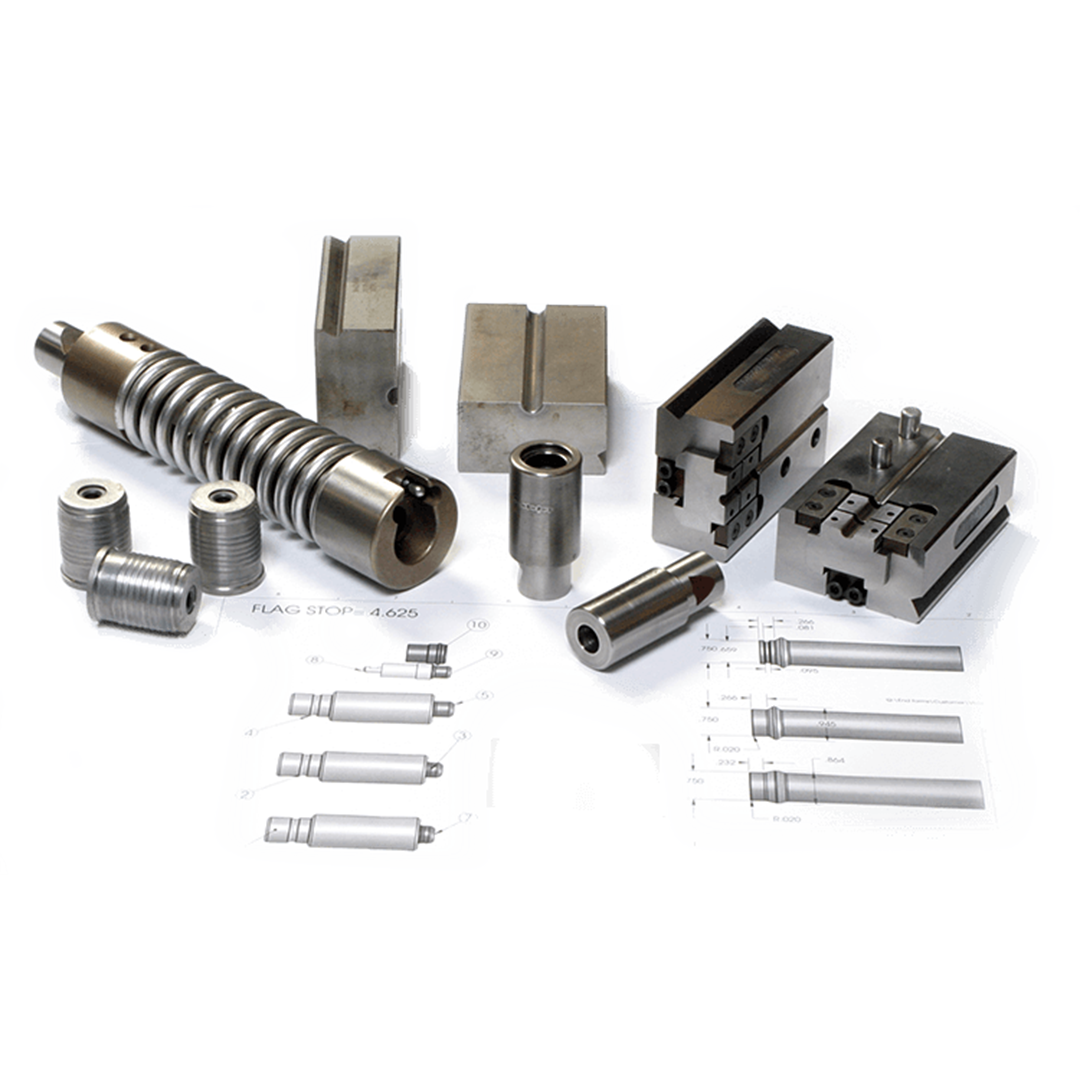

- Accepts industry standard tooling
- 10 or 15 ton hydraulic ram
Options
- Autoload tube hopper/loader
- Component Bowl Feeders

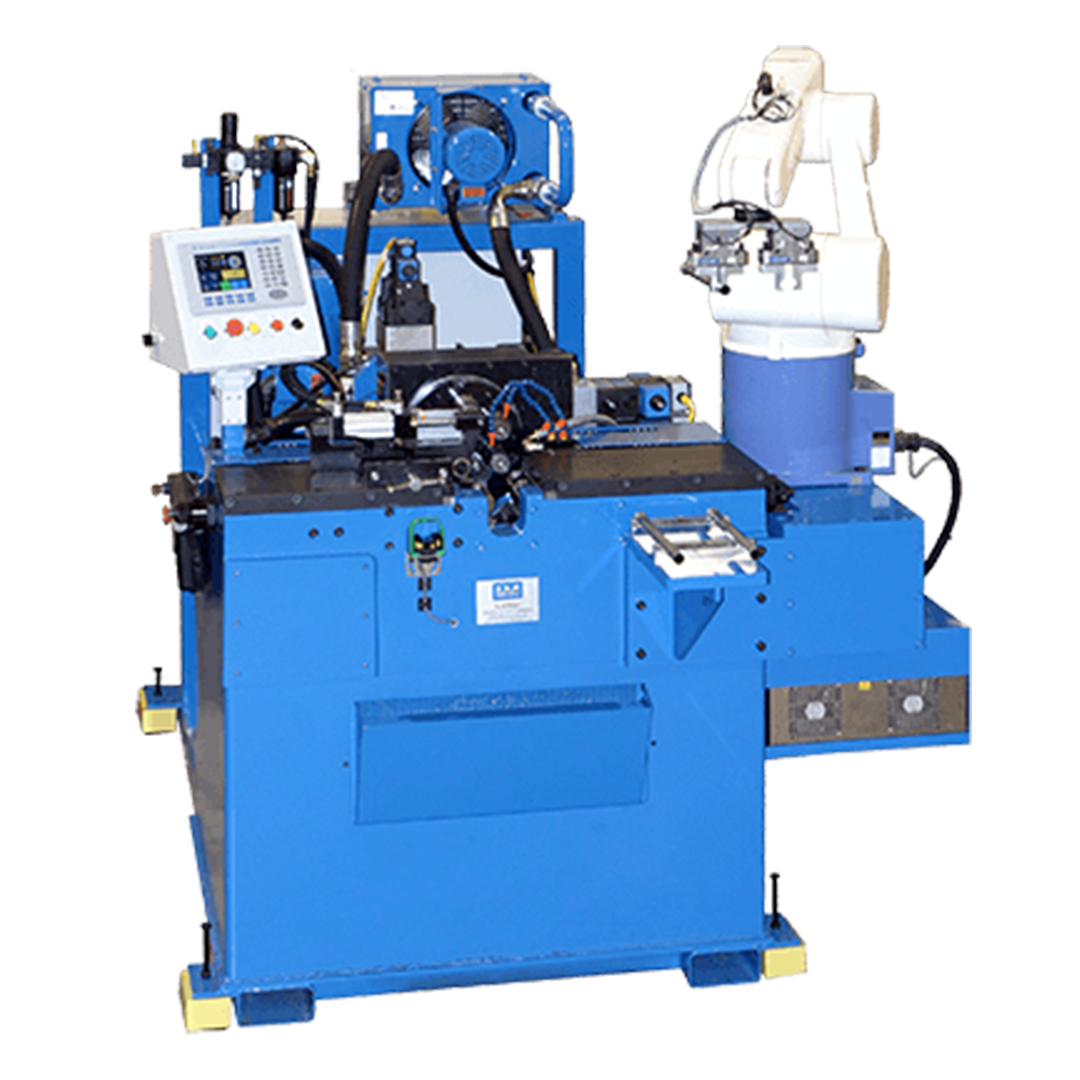

- Robot integration and transfer systems
- Part present sensors
- Operator touch screen interface
- CE/CSA/NR12 compliance
Ready to get started?
Make sure to have the following items handy when making your request for quote:
- Crimp specification
- Ferrule print
- Hose print
- Tube endform print
- Sample part – crimped
- Assembly print (with coordinates)
