Endform Tooling
Endform Tooling

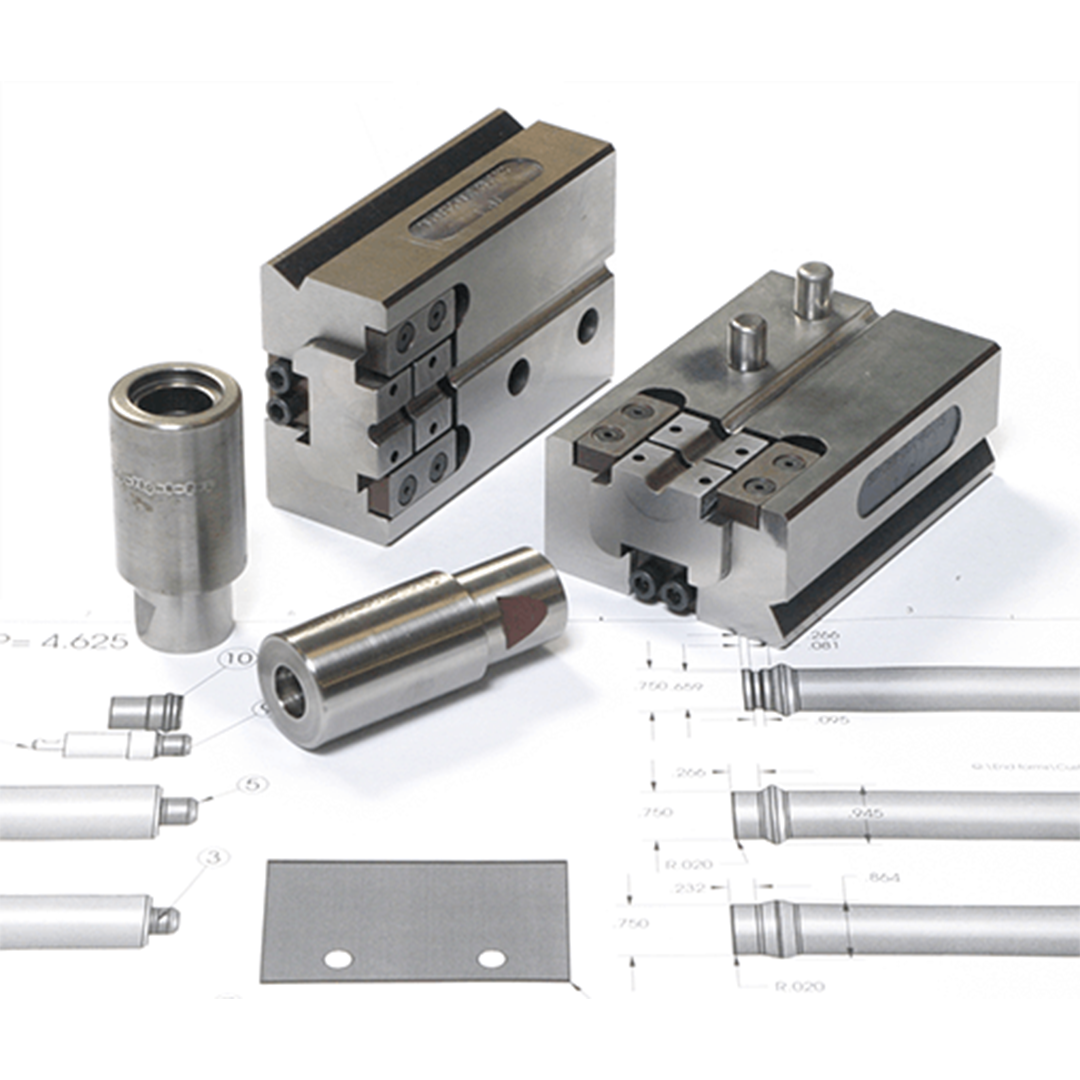

Our engineers start with your endform drawing, develop concept drawings, set-up information and part progression prints.

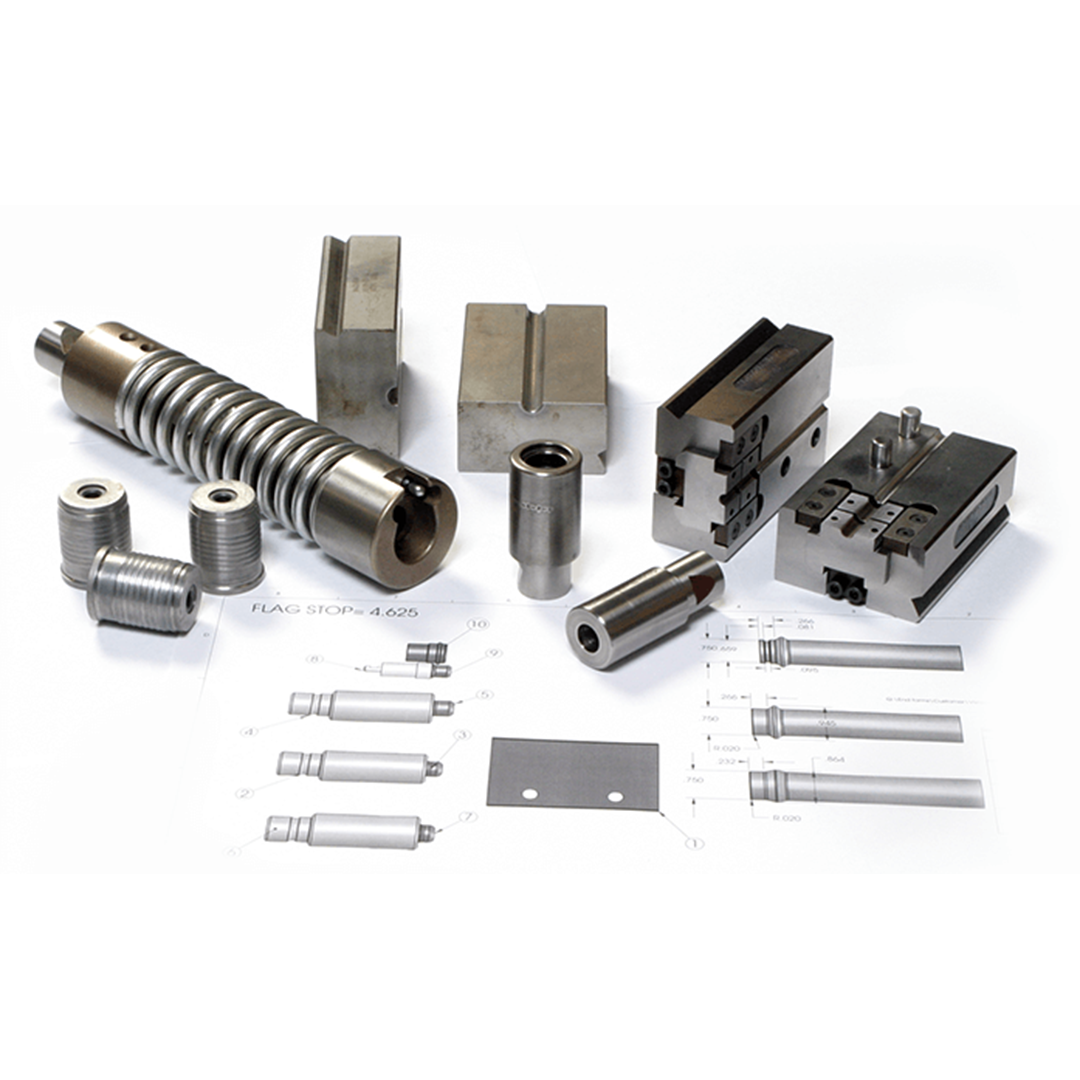

Tooling is machined in-house and then moved to our endform tooling development area for final tooling development and tryout.
- Punches
- Clamp Blocks
- Spring Punches
- Secondary Clamp Blocks
- Roll Forming/Grooving
Ready to get started?
Make sure to have the following items handy when making your request for quote:
- Endform specification (i.e. SAE, Ford, GM)
- Endform print
- Material specification
- Tube diameter
- Wall thickness
- Component prints (i.e. block, ferrule, coupling, ect.)
- Assembly print (with coordinates)
